📌 Engineering Summary – Key Takeaways
- LSR (Liquid Silicone Rubber) is a low‑viscosity, platinum‑cured liquid designed for fully automated injection molding with cold runner systems. Ideal for high‑volume medical, consumer, and precision sealing applications.
- HCR (High Consistency Rubber) is a high‑viscosity gum silicone processed by compression molding, transfer molding, or extrusion. Ideal for large seals, thick sections, low‑volume production, and extruded profiles.
- LSR advantages: superior dimensional accuracy, minimal flash, excellent transparency, biocompatibility, and fully automated manufacturing.
- HCR advantages: lower tooling investment, wider hardness range (20–90 Shore A), higher tear strength, extrusion capability, and greater flexibility for large or custom parts.
- Cost drivers: LSR has higher tooling cost but lower unit cost at high volume; HCR has lower tooling cost but higher labor and finishing costs.
- Decision factors: production volume, part geometry, dimensional accuracy, regulatory requirements (medical/food), automation goals, and total cost of ownership.
Bottom line: No single silicone material is universally better. Select based on application requirements and manufacturing economics – not material price alone.
1. Introduction
Selecting the correct silicone rubber material is one of the most important decisions during product development. Although Liquid Silicone Rubber (LSR) and High Consistency Rubber (HCR) are both silicone‑based elastomers, they are not interchangeable manufacturing solutions. The difference between LSR and HCR affects product design feasibility, mold structure, manufacturing process, production efficiency, quality consistency, total manufacturing cost, and long‑term product performance.
For engineers and purchasing teams, choosing between LSR and HCR is not simply a material selection decision – it is a manufacturing strategy decision. A silicone component designed for a medical device, electronic connector, or precision sealing application may require the high automation and repeatability of LSR injection molding. However, a large industrial gasket, custom sealing ring, or low‑volume silicone component may achieve better economic results through HCR compression molding.
2. What Is Silicone Rubber?
Silicone rubber is an elastomer based on a silicon‑oxygen (Si–O) backbone structure. Unlike many carbon‑based elastomers, the Si–O molecular structure provides higher thermal stability and resistance to environmental degradation. Silicone rubber maintains flexibility and mechanical performance across a wide temperature range (typical continuous service: -50°C to +200°C for LSR, -60°C to +250°C for HCR).
2.1 Why Silicone Is Different from Traditional Rubber
| Property | Silicone Rubber | EPDM | NBR | TPU | Natural Rubber |
|---|---|---|---|---|---|
| Continuous Service Temperature | Excellent | Good | Moderate | Moderate | Poor |
| Low Temperature Flexibility | Excellent | Good | Fair | Good | Fair |
| UV/Ozone Resistance | Excellent | Excellent | Poor | Moderate | Poor |
| Chemical Stability | Excellent | Good | Excellent (oils) | Good | Fair |
| Electrical Insulation | Excellent | Moderate | Poor | Moderate | Poor |
| Biocompatibility | Excellent | Limited | Limited | Limited | Poor |
3. LSR vs HCR at a Glance
| Property | Liquid Silicone Rubber (LSR) | High Consistency Rubber (HCR) |
|---|---|---|
| Material Form | Two-part liquid | Solid gum compound |
| Cure System | Platinum cure | Peroxide or platinum cure |
| Material Viscosity | Very low | Very high |
| Processing Method | Injection molding | Compression, transfer, extrusion |
| Automation Level | Excellent | Moderate to low |
| Dimensional Accuracy | Excellent | Good |
| Production Speed | Very high | Moderate |
| Labor Requirement | Low | Higher |
| Tooling Cost | High | Lower |
| Production Volume | Medium to very high | Low to medium |
| Medical Applications | Excellent | Limited |
| Transparency | Excellent | Moderate |
| Thin-Wall Capability | Excellent | Limited |

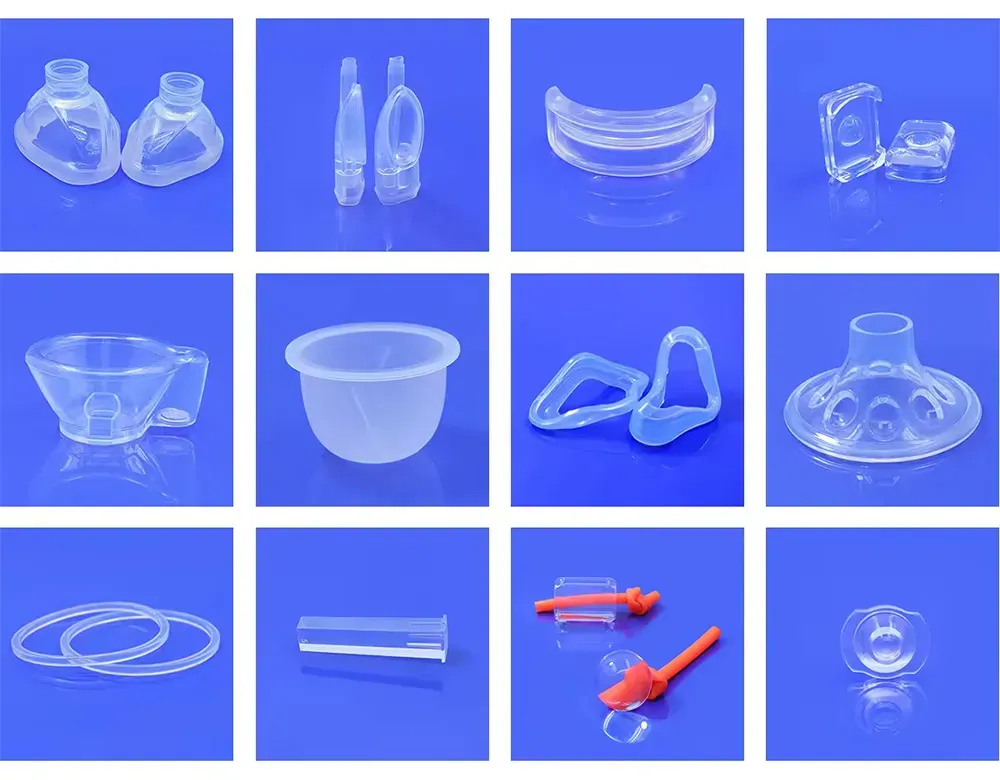

4. What Is Liquid Silicone Rubber (LSR)?
Liquid Silicone Rubber (LSR) is a two‑component, platinum‑cured elastomer specifically developed for precision injection molding and fully automated manufacturing. LSR is delivered as two pumpable liquid components (Part A and Part B) that are automatically metered, mixed, and injected into a heated mold where rapid vulcanization takes place.
4.1 LSR Injection Molding Process
- Material Storage & Preparation: Two components stored separately to prevent premature curing.
- Precision Metering & Mixing: Components are automatically metered at a precise ratio (typically 1:1) and mixed in a static mixer.
- Injection & Mold Filling: Low‑viscosity LSR flows into complex cavities, filling thin walls and micro features with ease.
- Vulcanization (Curing): Platinum‑catalyzed addition curing occurs inside the heated mold (160–200°C) within seconds.
- Automatic Demolding: Robotic systems remove finished parts, reducing labor and contamination risk.
Cold Runner System: LSR molds use a cold runner (20–30°C) to keep material uncured while the cavity is heated. This virtually eliminates runner waste and reduces cycle time.
4.2 Advantages of LSR
- Excellent dimensional accuracy and repeatability
- Fully automated production with minimal operator intervention
- Minimal flash and no secondary trimming
- High purity – suitable for medical, food, and cleanroom applications
- Excellent transparency and color stability
- Wide temperature range: -50°C to +200°C (special grades up to 250°C)
- Outstanding UV, ozone, and weather resistance
4.3 Limitations of LSR
- Higher tooling cost (typically 2–3× HCR compression molds)
- Higher equipment investment
- Sensitive to process control (mixing ratio, temperature, pressure)
- Limited suitability for very large parts
5. What Is High Consistency Rubber (HCR)?
High Consistency Rubber (HCR), also called gum silicone or millable silicone, is a high‑viscosity silicone elastomer supplied in solid sheet or strip form. HCR is processed by compression molding, transfer molding, or extrusion, and is cured using either peroxide or platinum systems.
5.1 HCR Compression Molding Process
- Material Preparation: HCR compound is cut into preforms of precise weight.
- Mold Loading: Preforms are manually or automatically placed into the heated mold cavity.
- Compression & Vulcanization: Mold closes under pressure; heat activates curing (170–190°C).
- Demolding & Trimming: Parts are removed and flash is trimmed (often manual).
- Post‑Curing (often required): Secondary heat treatment (180–220°C) removes volatiles and improves properties.
5.2 Advantages of HCR
- Lower tooling investment and simpler mold construction
- Suitable for large, thick parts and low‑volume production
- Wider hardness range (20–90 Shore A)
- Excellent tear strength and mechanical durability
- Compatible with extrusion for continuous profiles
- Flexible material customization
5.3 Limitations of HCR
- Higher labor requirements and manual operations
- Longer cycle times
- More flash and secondary trimming
- Lower dimensional consistency
- Limited automation potential
Every silicone project has unique requirements for performance, production volume, and manufacturing cost. Choosing the right material early in the development process helps reduce risk, improve product quality, and shorten time to market.Request a Free Material Selection Consultation →
6. Cost Comparison: LSR vs HCR
A complete cost analysis should consider tooling investment, labor, production efficiency, scrap rate, maintenance, and long‑term ROI. The table below summarizes key cost drivers.
| Cost Factor | LSR | HCR |
|---|---|---|
| Mold Complexity | High (cold runner, precision) | Low to Medium |
| Typical Tooling Investment | High | Low to Medium |
| Labor Cost per Part | Low | High |
| Automation Potential | Excellent | Limited |
| Scrap Rate | Low | Medium |
| Unit Cost (High Volume) | Low | Medium |
| Unit Cost (Low Volume) | High | Low |
6.1 Break‑even Analysis
| Annual Production Volume | Recommended Process | Primary Reason |
|---|---|---|
| <10,000 parts | HCR | Lower tooling investment |
| 10,000–100,000 parts | Depends on part complexity | Evaluate total cost |
| >100,000 parts | LSR | Higher productivity and automation |
7. Decision Matrix: How to Choose Between LSR and HCR
Use the following five questions to guide your selection:
- What is the required production volume? High volume → LSR; low volume → HCR.
- How complex is the product geometry? Complex, thin‑wall → LSR; simple, large → HCR.
- How important is dimensional precision? High precision → LSR; standard tolerance → either.
- Are regulatory requirements important? Medical/food → LSR; industrial → either.
- What is the long‑term cost target? Low initial investment → HCR; lowest lifecycle cost → LSR at high volume.
7.1 Quick Selection Matrix
| If Your Product Needs… | Recommended Material | Why |
|---|---|---|
| Medical certification | LSR | Platinum cure and biocompatibility |
| Food‑contact compliance | LSR | Clean processing and regulatory support |
| Ultra‑high production volume | LSR | Automated injection molding |
| Precision dimensions | LSR | Excellent repeatability |
| Transparent appearance | LSR | Superior optical clarity |
| Lowest tooling investment | HCR | Simpler mold construction |
| Large industrial gasket | HCR | Better suited for thick sections |
| High hardness (70–90 Shore A) | HCR | Wider hardness range |
| Extruded tubing or profiles | HCR | Compression/extrusion processes |
8. Common Manufacturing Defects in LSR and HCR Molding
| Defect | Symptoms | Root Causes | Engineering Solutions |
|---|---|---|---|
| Flash | Thin silicone film around parting line | Worn parting surfaces, excessive pressure, low viscosity | Optimize shot volume, reduce pressure, improve mold precision |
| Air Bubbles | Internal voids, surface blisters | Poor venting, excessive injection speed, contamination | Improve venting, use vacuum assist, control material |
| Short Shot | Incomplete filling, missing features | Low pressure, poor runner design, low mold temperature | Optimize gate location, increase pressure, adjust temperature |
| Surface Defects | Flow marks, rough surfaces, contamination | Poor mold finish, contaminated material, incorrect curing | Improve mold polishing, control cleanliness, optimize curing |
| Incomplete Curing | Soft parts, reduced elasticity | Incorrect material ratio, insufficient time/temperature | Control mixing ratio, increase cure time/temperature |
| Dimensional Variation | Out‑of‑tolerance dimensions | Shrinkage variation, temperature fluctuation, mold wear | SPC monitoring, stable temperature, regular mold inspection |
9. Industry Applications
| Industry | Recommended Material | Primary Engineering Reason |
|---|---|---|
| Medical Devices | LSR | Biocompatibility, precision, cleanroom |
| Baby Care | LSR | Food safety, transparency, softness |
| Food Processing | LSR / HCR | Depends on geometry and volume |
| Consumer Electronics | LSR | High precision, appearance, automation |
| Automotive Seals | LSR (precision) / HCR (large) | Volume and geometry specific |
| Electric Vehicles | LSR | Precision sealing and insulation |
| Industrial Equipment | HCR | Large components, lower tooling cost |
| Aerospace | HCR / Specialty LSR | Reliability and thermal resistance |
10. Buyer Checklist: What to Prepare Before Quoting
3D CAD files
2D engineering drawings with tolerances
Silicone type, hardness, color
Temperature range and chemical exposure
Prototype quantity and annual production volume
Regulatory requirements (medical, food, etc.)
Packaging and delivery specifications
Target project timeline
11. Frequently Asked Questions
Is LSR better than HCR?
No single material is better. LSR excels in high‑volume, precision, automated applications; HCR dominates large parts, low‑volume, and extruded profiles.
Is LSR more expensive than HCR?
Generally, LSR has higher material and tooling costs. However, at high volumes, its automation and efficiency often result in lower total cost per part.
Can HCR replace LSR?
Sometimes, but not always. Flow behavior, mold design, and precision capability differ significantly. Evaluate the complete application before switching.
Which silicone is best for medical applications?
Platinum‑cured LSR is generally preferred for medical devices due to its purity, precision, and cleanroom compatibility.
What is a cold runner system?
A cold runner keeps silicone uncooled (20–30°C) while the mold cavity is heated, eliminating runner waste and improving efficiency.
12. Conclusion
Selecting between LSR and HCR silicone rubber is a strategic engineering decision that affects product design, tooling investment, manufacturing efficiency, quality, and total cost. LSR is the preferred choice for high‑volume, precision, automated applications requiring cleanliness and consistency. HCR remains an excellent solution for large, simple, or low‑volume parts where tooling simplicity and flexibility are key.
By using the decision matrix, cost analysis, and defect prevention guidelines in this guide, engineers and buyers can make informed, data‑driven decisions that reduce risk and optimize long‑term manufacturing success.
