Vacuum Casting Accuracy: Tolerance, Factors and Design Guide

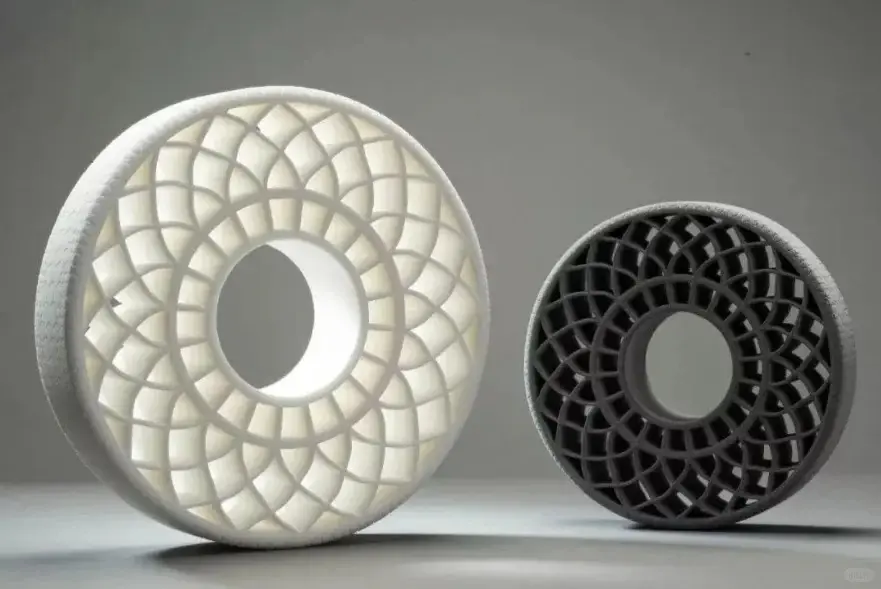

Vacuum casting is a widely used manufacturing process for rapid prototypes, functional samples, and small-batch production. By using a master pattern to create a silicone mold, manufacturers can reproduce complex plastic parts without investing in a conventional injection mold.
One of the most common questions during product development is: How accurate is vacuum casting?
In general, well-controlled vacuum casting can achieve dimensional accuracy around ±0.10 mm-level for suitable features and part sizes. However, the actual vacuum casting tolerance depends on the master pattern, silicone mold, casting resin, part geometry, curing conditions, and production quantity.
Understanding these factors helps engineers establish realistic tolerances before production.
| Part Type | Typical Accuracy Reference |
| Small structural parts | Around ±0.10 mm |
| General appearance parts | Around ±0.10–±0.20 mm |
| Assembly components | Depends on mating requirements |
| Large components | Requires project-specific evaluation |
| Thin-wall or complex parts | Greater variation may occur |
| Critical mounting features | Secondary machining may be recommended |
1. What Accuracy Can Vacuum Casting Achieve?
The dimensional accuracy of vacuum casting varies from one project to another. For general prototypes and small-batch parts, approximately ±0.10 to ±0.20 mm can be used as a preliminary reference for suitable dimensions.
These values are general engineering references rather than universal guaranteed tolerances. A manufacturer should evaluate the actual CAD model, material, dimensions, and required tolerance before production.
For critical dimensions, it is often more reliable to combine vacuum casting with secondary CNC machining rather than relying entirely on the casting process.
2. What Affects Vacuum Casting Dimensional Accuracy?
Several factors influence the final dimensions of a vacuum-cast component. The typical process can be viewed as: CAD model → master pattern → silicone mold → resin casting → curing → demolding → finishing. Dimensional changes at any stage can affect the finished part.
3. How Does Part Size Affect Vacuum Casting Accuracy?
Part size is another important consideration. For small components, a relatively small dimensional change may have little effect on the overall assembly. For larger components, even a small percentage of shrinkage can result in a noticeable absolute dimensional difference.
Large panels, housings, covers, and long structural components should therefore be evaluated individually. Engineers should consider part size, material shrinkage, mold deformation, and geometry together.
4. How Do Thin Walls and Complex Features Affect Accuracy?
Part geometry can significantly affect the stability of vacuum-cast components.
5. Does Silicone Mold Life Affect Accuracy?
Yes. A silicone mold has a limited service life, and repeated casting and demolding can gradually affect its condition. Complex parts containing deep cavities, undercuts, thin walls, sharp corners, or small holes can place additional stress on the mold.
As the mold wears, dimensional consistency may decrease. For projects requiring larger quantities or tighter dimensional control, mold condition should be monitored throughout production.
6. How Can Vacuum Casting Accuracy Be Improved?
Use an accurate master pattern. CNC machining or a suitable high-resolution 3D printing process can be selected according to the required accuracy.
Optimize the silicone mold. Proper mold design, parting lines, support, and demolding direction can reduce deformation.
Select the right casting material. Choose a resin according to the required mechanical properties, appearance, and dimensional stability.
Control the casting process. Vacuum degassing, mixing, pouring, and curing should be properly controlled to reduce bubbles, voids, and inconsistent curing.
Machine critical features after casting. For high-precision mounting holes, shafts, threads, and mating surfaces, secondary CNC machining can provide more reliable dimensional control.
7. Vacuum Casting vs. CNC Machining and 3D Printing
Vacuum casting is particularly useful when a project requires multiple prototype parts but does not yet justify the cost and lead time of a production injection mold.
8. When Should You Choose Vacuum Casting?
Vacuum casting can be a practical option for functional prototypes, product appearance validation, assembly testing, engineering verification, small-batch production, pre-production samples, market testing, complex plastic housings, and product development.
It is especially useful when a company needs several similar prototype parts with consistent appearance and suitable material characteristics.
Key Design Considerations
Thin-Wall Parts
Very thin walls are more susceptible to deformation during casting, curing, and demolding. Where possible, maintain a suitable wall thickness.
Large Flat Surfaces
Large flat surfaces can be affected by mold flexibility and part deformation. Ribs or structural reinforcement can help when the design allows it.
Small Holes and Posts
Small holes, thin posts, narrow slots, and sharp features can be difficult to reproduce consistently. Critical holes and mating surfaces can be finished by CNC machining.
| Process | Main Advantage | Typical Applications |
| CNC Machining | High dimensional control and broad material selection | Precision prototypes and functional parts |
| 3D Printing | Fast production and complex geometry | Concept models and design verification |
| Vacuum Casting | Good surface quality and multiple copies from one master | Small-batch prototypes and functional testing |
| Injection Molding | Suitable for repeated mass production | Medium- and high-volume production |
Conclusion
Vacuum casting can typically achieve around ±0.10 mm-level dimensional accuracy under suitable manufacturing conditions, but the actual result depends on the specific part and process.
Master pattern accuracy, silicone mold quality, resin shrinkage, part size, wall thickness, geometry, curing conditions, and mold usage all influence the final vacuum casting tolerance.
For prototypes with critical dimensional requirements, a combination of an accurate master pattern, controlled silicone mold production, suitable casting resin, and secondary CNC machining can provide better dimensional control.
For companies developing new products or requiring small quantities of plastic prototypes, vacuum casting provides a flexible solution between 3D printing, CNC machining, and injection molding.
