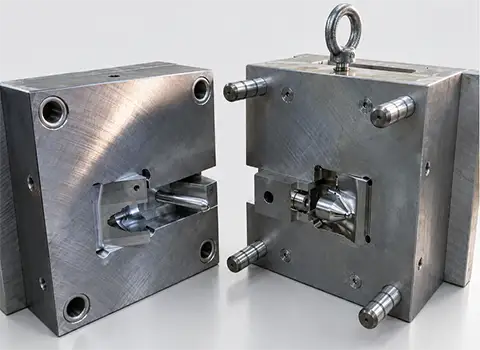

Rapid Tooling Service

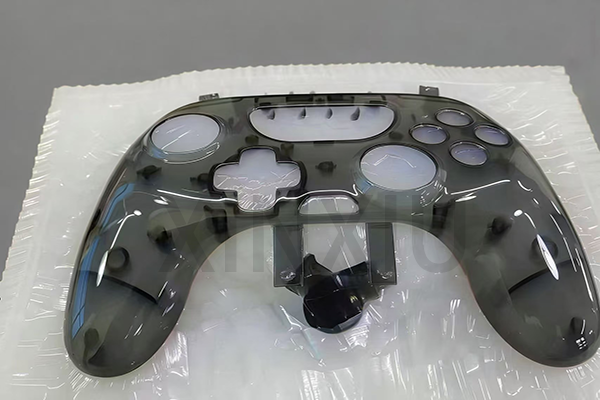

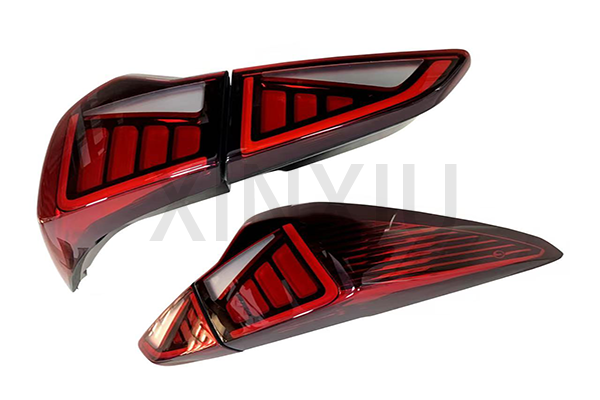

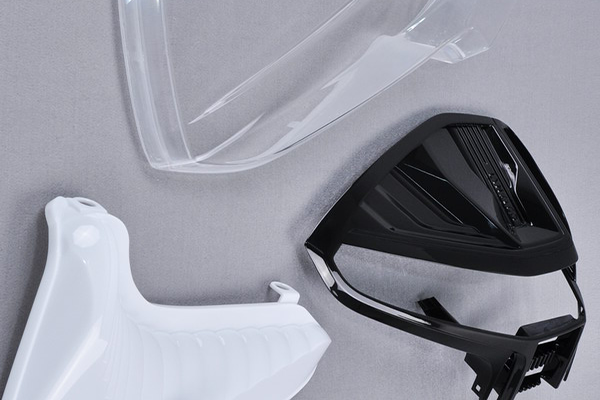

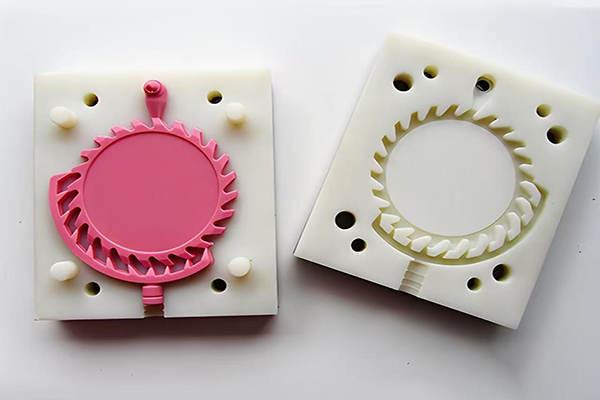

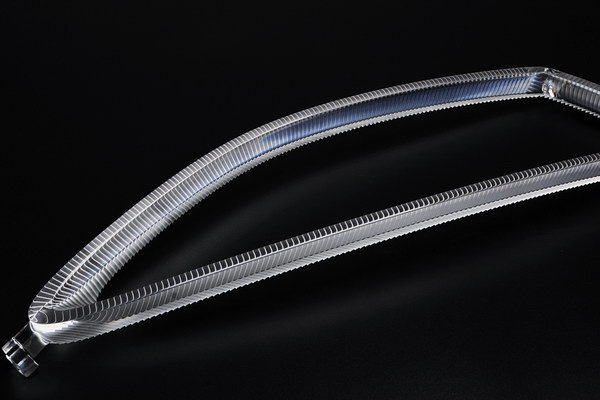

Rapid tooling,commonly referred to as soft moulds, prototype moulds or transition moulds, constitutes a specialised method of mould manufacturing tailored for small-batch production. It proves highly suitable for requirements such as marketing samples, product evaluation and development design. For small-scale projects, traditional moulding proves prohibitively expensive, whereas rapid prototyping offers a cost-effective alternative for low-volume production. This encompasses a range of tooling solutions including rapid injection moulds, die-casting moulds, and simplified sheet metal moulds. Its core purpose lies in rapidly producing hundreds or even thousands of parts for trial production prior to large-scale manufacturing. With over a decade of expertise, we flexibly select mould materials—resin, aluminium, or mild steel—based on material properties, surface finish requirements, and precision levels. By integrating shared mould bases and manual inserts where optimal, we achieve the finest balance between accuracy, quality, speed, and cost. This enables clients to complete design optimisation, functional testing, and pre-production validation.
✓ Precision: ±0.02 mm 3-5 days for trial molding 7 days for delivery.
✓ Free DFM + Mold Flow Analysis.
✓ Rapid prototyping parts can achieve 100% match with the final product.
✓ Lower tooling costs, saving up to 50-90% compared to mass production molds.
✓ Free 10-year mold maintenance service.
✓ Professional team conducts small-batch trial production with mold testing, including video documentation of the process.
All uploads are secure and confidential
Core Advantages of Rapid Tooling
✓ Competitive Pricing
Rapid tooling offers an efficient and cost-effective solution, delivering savings of up to 90% compared to mass-production moulds. This represents the most economical choice for budget-constrained start-up projects or small-batch trial production runs.
✓ Expedited Delivery
From rapid tooling to rapid injection moulding, samples can be delivered within 3-15 days. Compared to the months-long wait associated with traditional moulding, we help you seize market opportunities.
✓ Proof of Concept & Testing
Obtain product data using authentic materials for rapid validation. Conduct comprehensive testing of design, assembly, and functionality, enabling timely improvements based on trial results to prevent design flaws from reaching mass production.
✓ Risk Optimisation
Minimise the risks associated with designing and manufacturing mass-production moulds. By validating designs through small-batch moulds first, issues are identified and rectified early, ensuring the formal mould achieves first-time success.
and other properties match production parts exactly. Additionally, surface treatments like trivalent chromium plating, high-gloss black spraying, and matte leather grain finishes were applied to the rapid molds, enabling early validation of appearance and coating adhesion. Ultimately, the client received all 200 assemblies by Week 5. Real-vehicle road tests validated the reliability of all clips, plating layers, and brackets. Based on test results, three structural optimizations were implemented, saving two months in the subsequent mass production cycle.

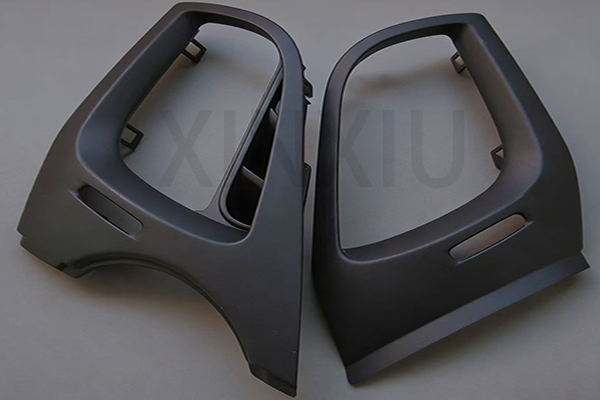

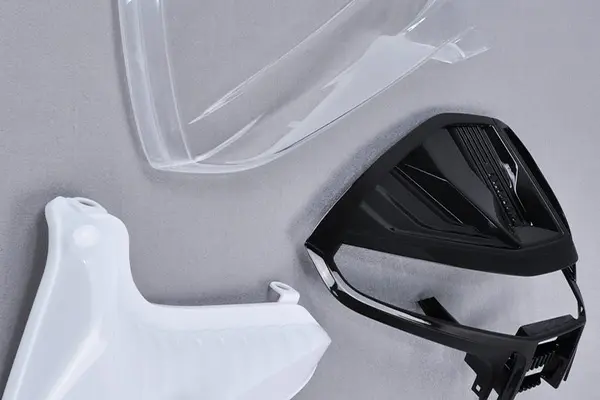

Rapid Mold Making Case Study
Customer’s Challenge and Limitations of Conventional Processes:

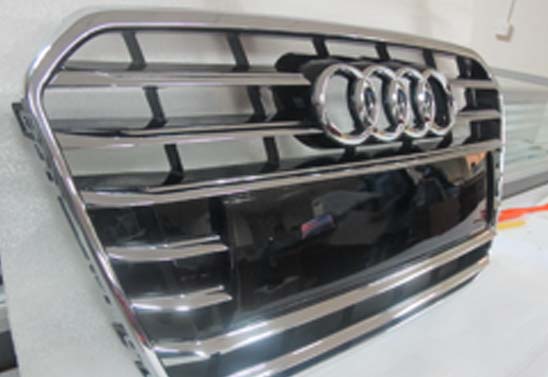

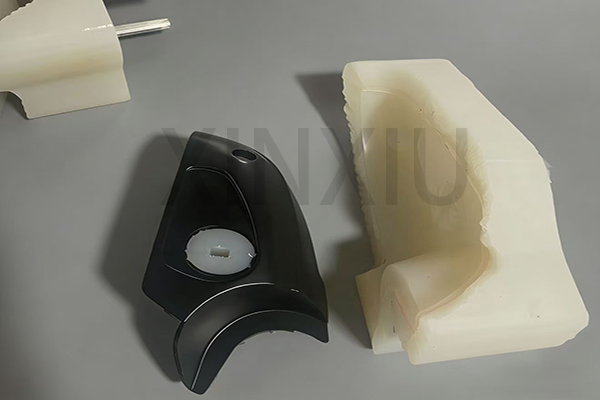

Our Audi client urgently required 200 sets of front grille assemblies (comprising over 30 components including chrome-plated outer frames, grille inserts, chrome trim strips, license plate covers, camera mounts, etc.) for vehicle design validation, assembly testing, and functional road trials. However, production molds require 5 months to complete, failing to meet the client’s urgent testing deadlines. While 3D printing, CNC machining, and vacuum casting are commonly used for rapid prototyping, none are suitable: 3D-printed materials exhibit significant performance differences from injection-molding grade resins, unable to replicate actual assembly strength or electroplating effects; CNC machining over 30 parts incurs extremely high costs and lengthy lead times, failing to capture the elastic deformation characteristics of structures like clips; vacuum casting cannot utilize actual engineering plastics (e.g., PC/ABS, ABS, POM) for testing.
Our Rapid Prototyping Mold Solution：
To address this challenge, we recommend our rapid mold solution, delivering 200 sets of mid-frame assemblies injection-molded in production-grade materials within 4-5 weeks. We selected production-grade engineering plastics (PC/ABS, ASA, POM) to ensure snap-fit strength, assembly stress, heat deflection temperature,
Engineering Design Team

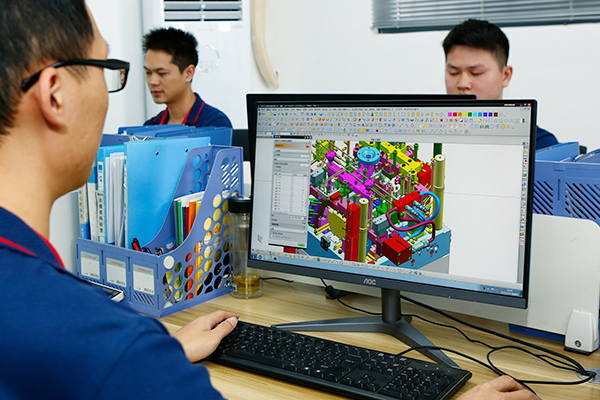

We maintain a dedicated team of engineers specialising in rapid tooling, with core members possessing extensive experience in both injection mould and die-casting mould design. We excel at delivering high-quality, small-batch mould solutions to clients within exceptionally short lead times. The team proficiently utilises professional design software such as UG (NX), Pro/E (Creo), and SolidWorks for comprehensive 3D mould design, ensuring flawless structural precision. Upon receiving 3D drawings, our engineers complete mould structure evaluations and DFM analyses within 24 hours. Utilising Moldflow injection mould flow analysis software and FLOW-3D CAST die-casting mould flow analysis software, we conduct comprehensive simulation optimisation of filling processes, solidification temperature fields, and air entrapment/shrinkage defects. This proactively identifies and mitigates potential issues, ensuring your components achieve successful moulding while minimising manufacturing costs – all within accelerated timelines. We possess particular expertise in product structural optimisation, simplifying complex geometries and refining draft angles while preserving functionality to effectively reduce production and processing costs. Throughout the project lifecycle, we maintain proactive communication, ensuring complete transparency from design through to trial moulding. This guarantees full realisation of all client expectations and requirements, enabling rapid product validation.

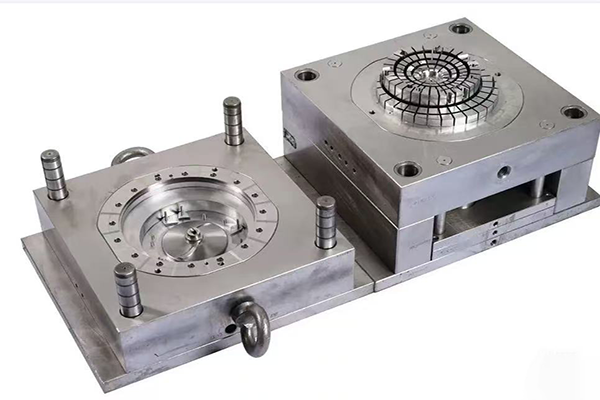

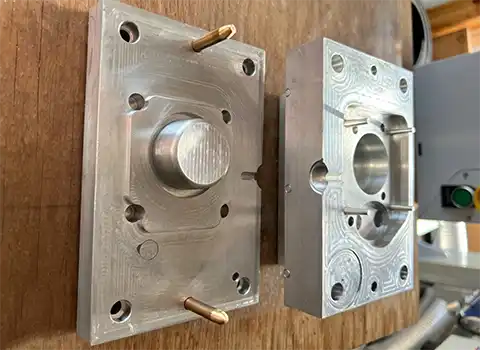

Rapid Tooling Manufacturing
我们专注于精密制造，提供高效可靠的快速模具。
首先，我们采用数控加工和电放电加工等先进技术，实现微米级模具零件制造精度，确保设计准确性和质量始终如一。随后，我们经验丰富的技术人员会进行细致的组装和镜面抛光，消除表面瑕疵，确保成型效果完美无瑕。
组装完成后，模具经历严格的调试阶段。包括模具闭合测试和动态冷却系统检查，以确保运行顺畅和性能稳定。在试模验证期间，我们进行小批量生产。通过反复测试和优化，我们确认模具在大规模制造中的可行性和稳定性。
最后，经过全面的质量检查和尺寸精度验证后，模具才在所有规格满足客户要求后才正式交付。这确保了顺利进入量产的过渡。
Rapid Tooling vs Production Tooling: How to Choose?
Rapid tooling and production tooling are complementary solutions. Your choice should depend on the product development stage, budget, and volume requirements. Below is a concise comparison to guide your decision.
| Key Factors | Rapid Tooling | Production Tooling |
|---|---|---|
| Application Stage | Prototyping, low-volume production, market testing | Mass production (10,000+ pcs) |
| Tooling Cost | 1,000 - 20,000 | 20,000 - 100,000 |
| Lead Time | 3 - 20 days | 8 - 16 weeks |
| Tool Life | 100 - 10,000 cycles | 100,000 - 1,000,000+ cycles |
| Design Flexibility | High (easy to modify) | Low (costly to modify) |
Frequently Asked Questions on Rapid Tooling
- What is the purpAose of rapid moulding?
- Rapid prototyping enables you to obtain authentic material data at minimal cost prior to formal mass production, thereby validating product design and market viability.

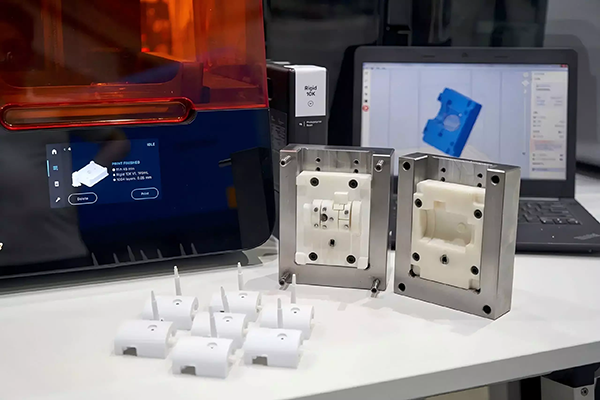

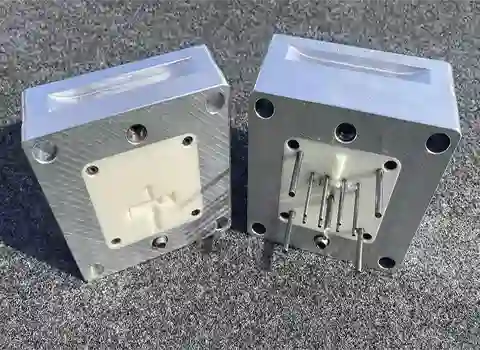

- What is the process for rapid tooling?
- High-temperature-resistant resin cores for 3D printing, aluminium or steel cores, manual inserts and interchangeable mould bases may be employed to reduce mould machining and assembly time.
- How soon can I obtain the samples?
- Depending on the part's dimensions and geometry, moulds for conventionally sized components such as 500 x 300 x 50 millimetres can be completed within 3 to 7 days.
- Is there a minimum order quantity?
- Whether you require dozens, hundreds, or thousands of items (up to 20,000 pieces), we can flexibly accommodate your production needs.
- How precise are rapid moulds?
- The precision of rapid prototyping moulds is ±0.02–0.05mm/100mm, fully meeting the requirements for early-stage development during prototype validation.
- How many parts can rapid moulding produce?
- Typically, resin moulds can produce 100 parts, aluminium moulds can withstand 1,000 injections, while Steel P20 moulds can endure 100,000 injections.
